I'm thinking it might even be possible someone might be interested in porting this to another engine as a map for it, like Source or UDK or something.

Test-Life 3 Confirmed? Actually if anyone's going to port this to Source I think an L4D2 or CS:GO map could be interesting. Hell, I might even look into doing it myself it if it's not too tricky.

[ripa]

1. The maps seem to only contain the terrain data, was it possible to extract the information for 3D objects and sprite placements or is that much more difficult?

I only managed to extract the terrain data - no props like houses, traffic signs or cows. I think tree placement is random anyway. If anyone else wants to take a stab at extracting the props, I can post some technical info about the game.



2. Since I made the video, someone was kind enough to send me a copy of the Cape Cod expansion for the game. If I sent that to you, would it be difficult to map out that data as well?

I tried that already, but unfortunately the exact same script I used for extracting the standard race courses did not work out of the box. It's probably not difficult to adapt it for the expansion disk race courses, but I need to take a break from this hacking.



3. The translation to blender + the lighting settings make the colors much less vibrant than the original game. Is it possible to get them closer to the original settings or is that too much of a pain? For faces that are dithered, it seems like the solution would be to just average the two colors they're using. The reason I ask is the contrast between the roads and some of the terrain is a little low. I'm thinking once this is polished a little more, it would be good to submit this to vgmaps.com either in your name, or under my account, giving you credit of course.



4. While I'm afraid I don't know blender, would you be interested in releasing the model files for this? I'm thinking it might even be possible someone might be interested in porting this to another engine as a map for it, like Source or UDK or something.

I re-rendered the overhead maps without the directional light source. The colors are now saturated and flat. I used averaging for extracting the dithered colors. I included the new renders as well as the old ones in the following ZIP file as lossless PNGs. Feel free to submit them to VGmaps! Also, the 3d files are included (Wavefront OBJ format), as well as the Python script I wrote for extracting the data from the game (but I doubt it will work for anyone else). I hope FileDropper doesn't suck.

http://www.filedropper.com/td3-maps



All in all, thanks a bunch, it seems like I'll have to make a follow-up video to this later on.

Cool!

[scott155]

Well I was at least going to look into how difficult it would be to put it in Source, but the files aren't downloading properly. Not sure if it's an issue with filedropper or my internet.

[scott155]

Got it downloaded but now when I import it into 3Ds MAX it does a bad. Specifically it looks like it got balled up and then run over by a steamroller. I was just importing the .obj files. Is there some other step I'm missing?

[ripa]

Yeah, FileDropper sucks. I can't download the file any more either. Let's try sendspace:

https://www.sendspace.com/file/9ce6o5



As for the .OBJs. All I can recommend is to try importing the files in Blender. You can export to you favorite format from there.



edit: re-re-uploaded to Sendspace

edit2: sendspace sucks - OBJs available at viewtopic.php?p=227814#p227814

Edited July 18, 2015 by Guest (see edit history)

[Frostiken]

Ross, you were complaining about the steering being all wonky.



Did you not notice how fast the clock was ticking in-game? Or that every car accelerated 0-140 in like two seconds?



The game is running at nearly 5x speed - that's the problem. If you found a way to slow it down (where's your Turbo button?!) the steering would be fine and you wouldn't be constantly flying off the road!

[VeryShyPerson]

I can't remember if he mentioned it in the video, but the speed actually doesn't help the steering. I tried slowing it down on my configuration (if you use D-Fend Reloaded, it actually makes you a keyboard shortcut) and it was still awfulllllll steering, just a bit slower.

[Ross Scott]

Ross, you were complaining about the steering being all wonky.



Did you not notice how fast the clock was ticking in-game? Or that every car accelerated 0-140 in like two seconds?



The game is running at nearly 5x speed - that's the problem. If you found a way to slow it down (where's your Turbo button?!) the steering would be fine and you wouldn't be constantly flying off the road!

Everybody keeps saying this like they think they know what they're talking about. It sucks at every speed, just in different ways. I only sped the clock up to make the video more watchable. I plan on bringing this up in a follow-up video later on, (including some words from Lazy Game Reviews!).

[SeveredBrain]

Hi Ross. I'm a long time listener, first time caller. Awesome series. On the topic of hearing Freeman's voice doing game reviews: I've kinda been imagining it as a hobby that Dr. Freeman had prior to Black Mesa.



I actually came here explicitly looking for the map data and I was not disappointed. However, all the above links to the map files are dead. Can someone post an updated link? Along those lines what format was the data stored in? Now, I know I'm not in a position to ask for things, but I'd love to see a brief write-up of the process in extracting the map data if @ripa is up to it.



-SeveredBrain

[ripa]

I uploaded the ZIP archive to Sendspace again.



I didn't actually crack any of the file formats of the game. Instead, I executed the game in debugger-enabled version of Dosbox and dumped the memory after the game had loaded each track. The Python script included in the archive should be able to extract the track 3d data in .OBJ (+ .MTL for color) format from each memory dump. I used IDA Free 5, Dosbox debugger, and Bitmap Memory Debugger ( http://www.theycamefromhollywood.com/bmd/ ) to discover enough information about the internal data formats used by the game to be able to write the Python script.



Here's some copy-pasta of a PM I sent to someone else:

Here's some instructions:

- Get a debugger-enabled version of Dosbox (e.g., http://www.vogons.org/viewtopic.php?t=7323 ).

- Set memsize=2 in the config file as well as anything else needed for TD3.

- Start the game. When you're in the menu or driving on any of the courses, hit alt-break to break into the debugger.

- Dump the 2 megabytes of emulated memory with command: memdumpbin 0:0 200000

- Now you should have a memdump.bin file in the dosbox directory. You should be able to extract the course you were driving on using memdump-to-obj.py.

- To extract all the courses, you need to repeat this for the main menu and each course.



Memdump-to-obj.py will work for your memory dumps if the game has loaded all the data in the same memory locations as on my computer, but I don't know if that is guaranteed or not. If it's not, the script will just print a bunch of errors and fail completely. It can be fixed by finding the correct offsets by debugger and adjusting the addresses referenced in memdump-to-obj.py.



Here's some plaintext information on the race courses. They consist of 16x32 grid of square tiles ("pieces" in the Python script). Each tile has an elevation (not relevant if you just want an orthogonal overhead map), can be rotated 0, 90, 180, or 270 degrees, and can be reused multiple times.



Ingame, the course is stored as a 16x32 entry table, where the table index gives the east-west and north-south coordinates of the tile. So the first tile, entry index 0, is one corner, and the last tile, index 16x32-1 is the opposite corner.



Each entry in the table consist of a z coordinate (elevation), rotation bits (0, 90, 180, 270 degrees), and some identifier or index. The identifier tells what type of tile it is.



There are separate data tables that contain the data for each tile. Each tile consists of several faces stored in a table. One entry in the table defines one face. Each entry refers to 3 or 4 vertices (by index) and two colors (again by indices).



Vertices have 16-bit x, y, and z coordinates. There's one table per dimension, and each vertex is referenced by an index into all three tables.



Color is stored in separate tables again using indices.

[Veyrdite]

Well damn. I should have looked at this forum topic before having a go myself



PRESS F6 TO GET YOUR AFTERNOON BACK



A few notes about my version of the game

• I found an infinite lives hex-edit guide, but it seems to be for a different version of the executable.

• No oversteering issues until I took the clocks very high. I suspect the game was designed to run comfortably at a low framerate, something we are not used to thinking is normal.

• My version only came with one map: Pacific Yosemite





Initial analysis

The level appeared to be segmented into square regions, ala chunks in Minecraft, and you can trace the seams across the entire map. Setting the quality to low makes this more obvious as adjacent chunks tend to stay hidden for longer.



It appeared like the terrain was a height-map and the roads + entities were added ontop.



I took the file-analysis approach rather than analysing running memory. Some rudimentary DOSBOX debugging and flower-arrangement lead me to believe the map data was stored in SCENE01.DAT



File analysis

Method:

1. Blank out a segment

2. Load the game

3. Observe what happens



This data file is amazingly resilient. I'm convinced a lot of what's in there is unnecessary



Results

Around 0x7600 in SCENE01.DAT appears to be the heightmap values for a chunk directly infront of the starting position (just before the bridge). They look like two-byte values and appear to start with the north-most row (assuming you start the game facing north) going left to right. This particular chunk is mostly the same (00 02) for all verts as it's flat.



I could be horribly off-track as I only dabbled into this over the last few hours. To find that someone had already completed is downright crazy -- consider yourself admired ripa!



Other interesting things I discovered

• Some patches of brown land near water are marked as 'road' by the game.

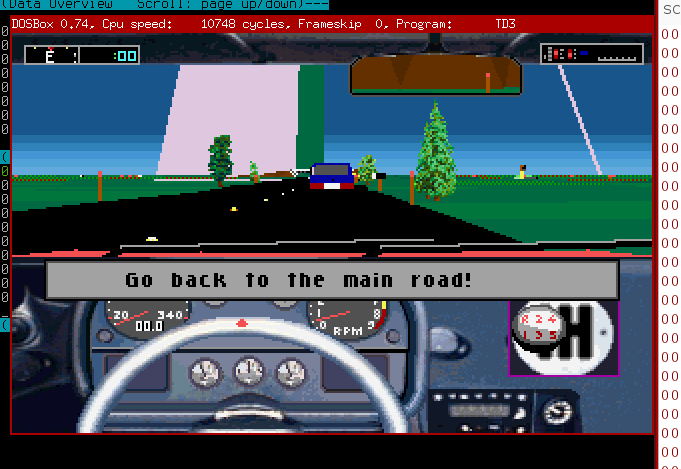

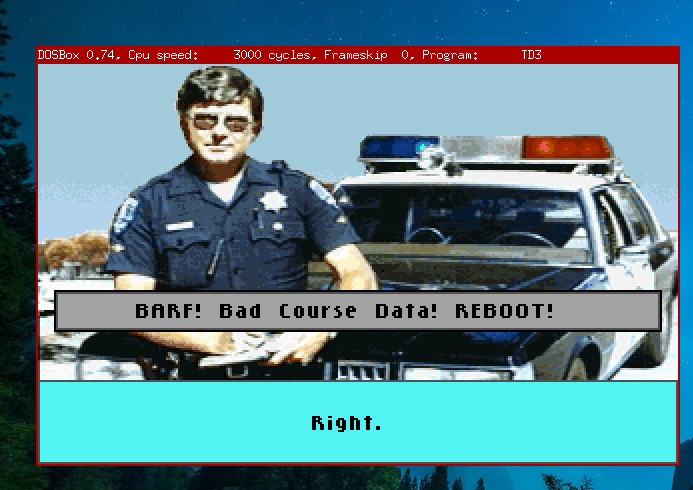

• Some interesting error messages: see attached

• The road and entities are indeed sep data to the terrain. I suspect the road is rendered after the terrain to ensure the correct Z-order. Cars follow the road blindly, even through terrain.

• Changing 0x766a (X) leads to some very fun corruption of the chunk I was playing with. It's probably a start/end marker or counter for a number of some element in the chunk. It let me 'finish' the race by driving through the chunk (beat my best time of a few seconds!).

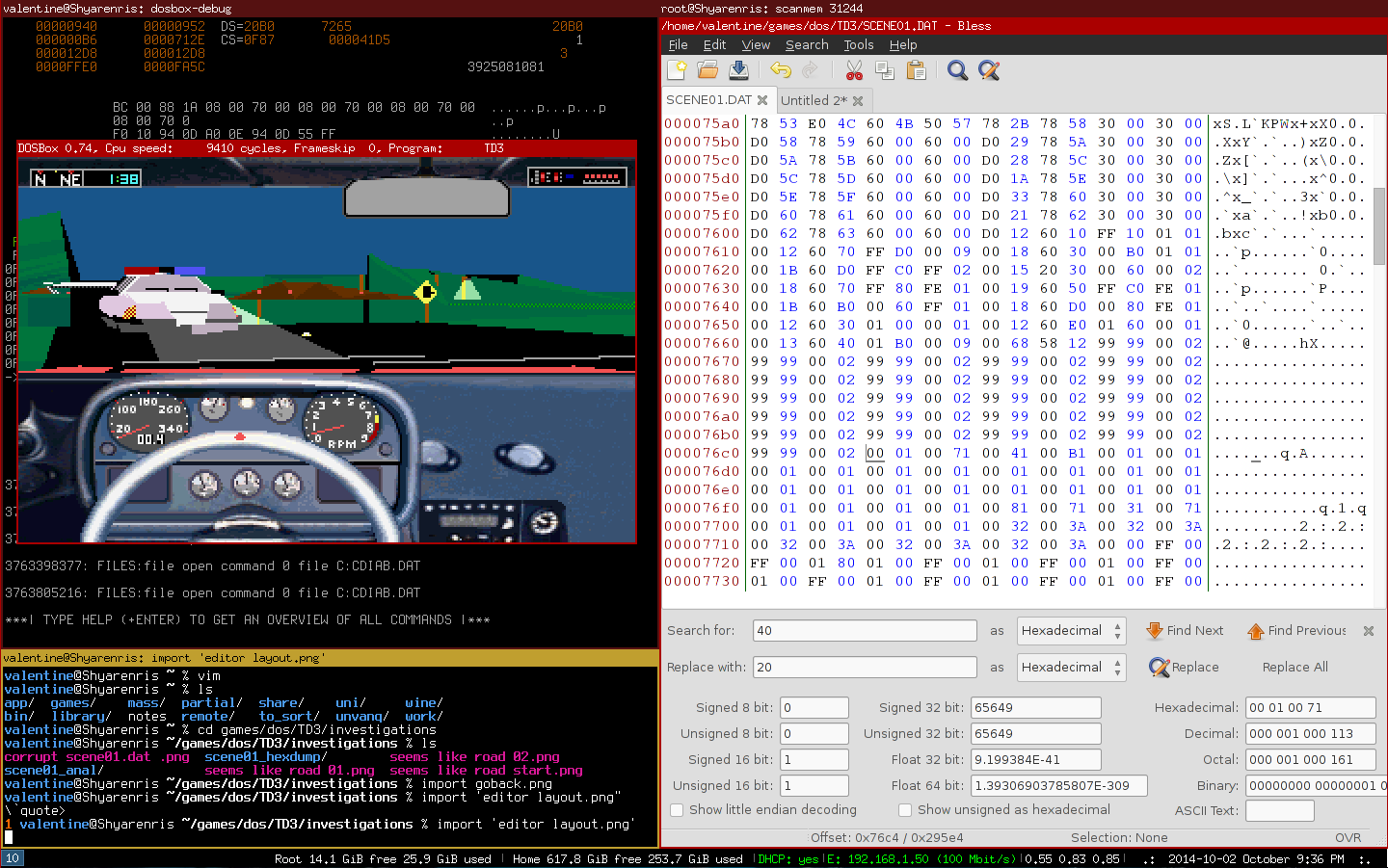

[Ross Scott]

[*] No oversteering issues until I took the clocks very high. I suspect the game was designed to run comfortably at a low framerate, something we are not used to thinking is

At lower speeds, there's clear lag between when you try to steer v. when the car actually starts moving. It's really a "pick your poison" situation between low and high framerate.

[ripa]

Sneak peek of Cape Cod:

[Veyrdite]

I'm going to have to track down these other maps now.

[Komojo]

I just saw Ross' Test Drive 3 video and I couldn't resist the challenge of trying to extract the map data.



I saw this thread and I was not surprised to find out that someone already beat me to it. It looks like you're still missing a few things, though; the maps are missing some of the models and it looks like you're getting the data from memory using a hacked DOSBox rather than loading it directly from the files?



I started looking into it myself and I'm hoping to extract all of the data from the files including the extra models.



The link to that Python script appears to be dead, so I decided to try to figure it out on my own, based on ripa and Veyrdite's advice. Here's what I've got so far:





These are models loaded from SCENE01.DAT and DATAB.DAT. I'm halfway there but I don't have the data for the actual map layout yet. I was able to decode one of the models based on Veyrdite's post, then once I figured out the format I wrote a function to search the files for data that looks similar. I was able to find most of the models, but it was just a brute-force search algorithm; I don't know how the game is actually determining the file offsets when it loads the level.



I was able to find a lot of non-road models this way:









I found most of the models, but playing through the game I can see there are a few missing ones. I couldn't find the lighthouse, some other background buildings, the other cars on the road, or the cows. I have some ideas for how I might be able to find them.



I did find some interesting quirks with the car models:









* There are no polygons underneath the cars, they're just thin shells of polygons going over the top.



* There are actually several huge gaps in between the polygons where you can see through the model, but it's so low-res that you can't see it in the game.



* What's that gray diamond on the hood of the Diablo? Did I do something wrong when I loaded the model?





Nope! If you look at the windshield, it looks like it would be made from two triangles and a quad, but they were really stingy with the polygons, and they just modeled it with two quads that stick out past the hood. The only reason it looks correct in the game is because the z-ordering makes it draw the hood over the windshield.





Most of the time, anyway:





Finally, I found a few errors in the Mythos model. Here's something that is hard to notice in the game but if you're obsessive-compulsive it might drive you crazy:





For one thing, one of the vertices in the very front sticks out more than it should. But also, the glowing polygon for the headlights is asymmetrical! It comes out the bottom of the right headlight and the top of the left one!





Anyway, that's what I've got so far. I'm going to try to decode the rest of the level data. If you could re-host that Python script it would make it a lot easier, otherwise I'll continue with the strategy of "blanking out parts of the file and seeing what happens."



If anyone here wants to see my model loading code, I can upload it somewhere once I clean it up a bit. I'm using C++ and OpenGL to render the models.

[Veyrdite]

Awesome work Komojo. As I'm a lazy Australian, do you mind sharing the addresses of data you have found in the files?



You have motivated me to do something interesting, but whilst I'm getting carried away with this I should disclaim that my version of the game might be different:

-MD5sum-                          -Filename-
395bb9e79ab949c627cc8f192ee8cc36  DATAA.DAT
f10ac7b99768a8544401cf2f0026f60d  TD3.EXE
c0f1ec4e86c3b3cb8290f8506db4e2b9  SCENE01.DAT
d214c20b2fa7638cb2fac8ab129e9c2d  DATAB.DAT



Additionally: what 3d format are you writing into? Something nice in ASCII or are you interfacing with some easy libraries?

[Veyrdite]

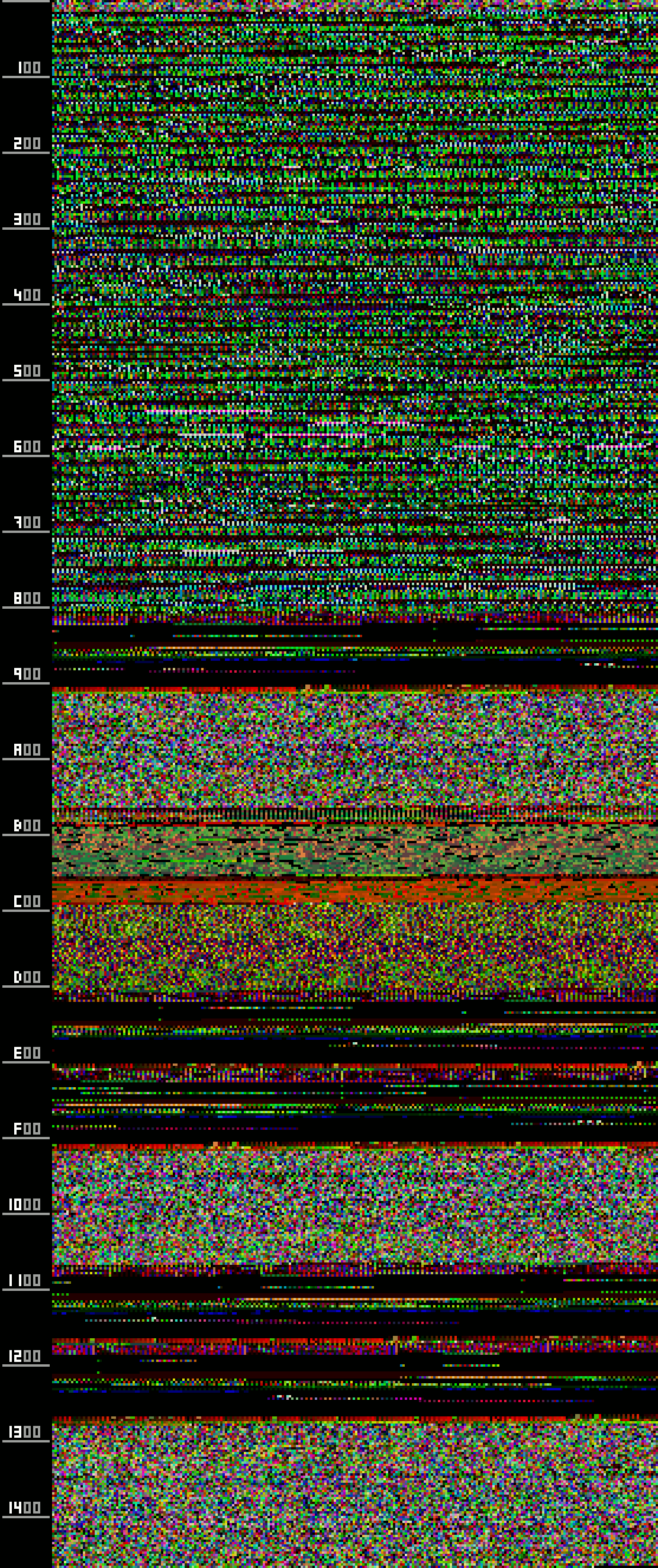

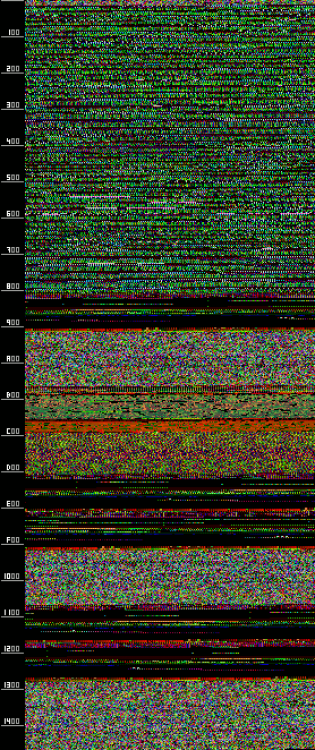

Here we go: this is SCENE01.DAT, with each byte of the file represented as a pixel. Each row is 256 bytes and the file should be about 1.5Kb. I manually drew on the index down the side so I apologise if it's off.



I'll do the same for the remaining files of interest. Hopefully you (and others) will find this useful for tracking down areas of data to play with.



Meanwhile I'll improve my tool and upload it somewhere.

[Veyrdite]

DATAA.DAT (least interesting)

DATAB.DAT (most interesting)

DATAC.DAT (small compared to the others)



Award for the least interesting pictures in this thread!

[ripa]

Great job Komojo! I think you've solved the hardest part. The map layout should be a simple 32x16 table of 2-byte little-endian words. Each word encodes the elevation of a tile, rotation of the tile, and the type of the tile. The elevation should be ((word & 0x3F00) >> 8), the tile type index should be (word & 0xFF), and the rotation bits should be (word >> 14). Memdump-to-obj.py is attached. Sorry that it's a steaming pile of crap (but it worked



edit: These should be the offsets to the map layouts. I found them by searching the DAT files for the map layout data that I got from the memory dumps.



DATAB.DAT
0x216e2 main menu

SCENE01.DAT
0x1031f course 1
0x1a2ab course 2
0x1c3f8 course 3
0x21644 course 4
0x23791 course 5

SCENE02.DAT
0x1022c cape cod course 1
0x2166e cape cod course 2
0x26352 cape cod course 3
0x2849f cape cod course 4
0x2d95b cape cod course 5



For example, course 1 corner tile is bytes 2a 01 at SCENE01.DAT:0x1031f. Tile type (index) is 2a, elevation is 1, and rotation is 0.

memdump-to-obj.zip

[Komojo]

Thanks! Both the Python script and those color charts should come in handy.



• Changing 0x766a (X) leads to some very fun corruption of the chunk I was playing with. It's probably a start/end marker or counter for a number of some element in the chunk. It let me 'finish' the race by driving through the chunk (beat my best time of a few seconds!).

This is correct. The 'X' (0x58) is the number of vertices, and the byte just before it at 0x7669 is the number of polygons.



Here's an excerpt of the model rendering code. I'll post the whole project once I get it to load the full maps.





TestDriveModel.h

#pragma once

class C_TestDriveModel
{
public:
C_TestDriveModel();
~C_TestDriveModel();
void RenderModel(bool Wireframe);

friend class C_TestDriveFile;
private:
void AllocateVertices(int NumVertices);
void AllocateQuads(int NumQuads);
void DeallocateVertices();
void DeallocateQuads();

void DrawQuad(int Index0, int Index1, int Index2, int Index3, int Color0, int Color1, int Special0, int Special1, bool Highlight, bool Wireframe);
void DrawTriangle(int Index0, int Index1, int Index2, int Color0, int Color1, int Special0, int Special1, bool Highlight, bool Wireframe);
void DrawLine(int Index0, int Index1, int Color0, int Color1, int Special0, int Special1, bool Highlight, bool Wireframe);
void DrawWheel(int Index0, int Color0, int Color1, int Special0, int Special1, bool Highlight, bool Wireframe);
void DrawDude(int Index0, int Color0, int Color1, int Special0, int Special1, bool Highlight, bool Wireframe);

void GetColor(int Index0, int Index1, int Special0, int Special1, int &outRed, int &outGreen, int &outBlue);

signed short *m_Xs;
signed short *m_Ys;
signed short *m_Zs;
struct S_Quad
{
	unsigned char m_Index0;
	unsigned char m_Index1;
	unsigned char m_Index2;
	unsigned char m_Index3;
	unsigned char m_Color0;
	unsigned char m_Color1;
	unsigned char m_Special0;
	unsigned char m_Special1;
};
S_Quad *m_Quads;
int m_NumVertices;
int m_NumQuads;
};



The model data for the cars is the same as the road tiles except that it starts at a different offset relative to the header. I think that might be the case with the other models I wasn't able to find.



TestDriveFile.cpp

#include "TestDriveFile.h"
#include "TestDriveModel.h"
#include
#include "print.h"
#include
#include

void C_TestDriveFile::LoadFile(const char *FileName)
{
FILE *File;
fopen_s(&File, FileName, "rb");

if (!File)
{
	Print("  Error opening file.\n");
	return;
}

fseek(File, 0, SEEK_END);
m_FileSize = ftell(File);

DeallocateFileBuffer();
m_FileBuffer = new unsigned char[m_FileSize];

if (!m_FileBuffer)
{
	Print("  Error allocating file buffer.\n");
	return;
}

fseek(File, 0, SEEK_SET);
fread(m_FileBuffer, m_FileSize, 1, File);

fclose(File);
}

void C_TestDriveFile::ConvertCarModel(C_TestDriveModel &outModel)
{
ConvertModelData(8, m_FileBuffer[1], m_FileBuffer[0], true, outModel);
}

void C_TestDriveFile::ConvertModel(int BufferOffset, C_TestDriveModel &outModel)
{
// m_FileBuffer[bufferOffset+3] = number of road dots
ConvertModelData(BufferOffset+4, m_FileBuffer[bufferOffset+1], m_FileBuffer[bufferOffset+0], false, outModel);
}

void C_TestDriveFile::ConvertModelData(int FileOffset, int NumVertices, int NumQuads, bool Car, C_TestDriveModel &outModel)
{
outModel.AllocateQuads(NumQuads);
outModel.AllocateVertices(NumVertices);

unsigned char *CharLoad = &m_FileBuffer[FileOffset];

for (int t = 0; t < outModel.m_NumVertices; t++)
{
	outModel.m_Ys[t] = *CharLoad++;
	outModel.m_Ys[t] |= *CharLoad++ << 8;
}

for (int t = 0; t < outModel.m_NumVertices; t++)
{
	outModel.m_Xs[t] = *CharLoad++;
	outModel.m_Xs[t] |= *CharLoad++ << 8;
}

for (int t = 0; t < outModel.m_NumVertices; t++)
{
	outModel.m_Zs[t] = *CharLoad++;
	outModel.m_Zs[t] |= *CharLoad++ << 8;
	outModel.m_Zs[t] = -outModel.m_Zs[t];
}

for (int t = 0; t < outModel.m_NumQuads; t++)
{
	C_TestDriveModel::S_Quad &ThisQuad = outModel.m_Quads[t];
	ThisQuad.m_Index0 = *CharLoad++;
	ThisQuad.m_Special0 = *CharLoad++;
	ThisQuad.m_Index1 = *CharLoad++;
	ThisQuad.m_Color0 = *CharLoad++;
	ThisQuad.m_Index2 = *CharLoad++;
	ThisQuad.m_Color1 = *CharLoad++;
	ThisQuad.m_Index3 = *CharLoad++;
	ThisQuad.m_Special1 = *CharLoad++;
}
}



The "glBegin" and "glEnd" stuff in the rendering code is sort of an obsolete way of doing it. I should be using vertex buffers and whatnot, but it's easier for me to write code this way.



TestDriveModel_Render.cpp

#include "TestDriveModel.h"
#include
#include "GL\gl.h"
#include

void C_TestDriveModel::RenderModel(int Highlight, bool Wireframe)
{
for (int t = 0; t < m_NumQuads; t++)
{
	const S_Quad &ThisQuad = m_Quads[t];
	DrawQuad(ThisQuad.m_Index0, ThisQuad.m_Index1, ThisQuad.m_Index2, ThisQuad.m_Index3,
		ThisQuad.m_Color0, ThisQuad.m_Color1, ThisQuad.m_Special1, ThisQuad.m_Special0, (t == Highlight), Wireframe);
}
}

void C_TestDriveModel::DrawQuad(int Index0, int Index1, int Index2, int Index3, int Color0, int Color1, int Special0, int Special1, bool Highlight, bool Wireframe)
{
switch (Special1)
{
case 0x00:
	DrawWheel(Index0, Color0, Color1, Special0, Special1, Highlight, Wireframe);
	return;
case 0x10:
	DrawDude(Index0, Color0, Color1, Special0, Special1, Highlight, Wireframe);
	return;
case 0x80:
case 0xA0:
	DrawTriangle(Index0, Index1, Index2, Color0, Color1, Special0, Special1, Highlight, Wireframe);
	return;
case 0x40:
case 0x48:
case 0x50:
case 0x58:
case 0x70:
case 0x78:
case 0x68:
	DrawLine(Index0, Index1, Color0, Color1, Special0, Special1, Highlight, Wireframe);
	return;
}

int Red, Green, Blue;
GetColor(Color0, Color1, Special0, Special1, Red, Green, Blue);
if (!Wireframe && (Red == 255) && (Green == 255) && (Blue == 255)) // Headlights
	return;

if (Wireframe)
	glColor3ub(255, 255, 255);
else
	glColor3ub((unsigned char)Red, (unsigned char)Green, (unsigned char)Blue);

if (Wireframe)
glBegin(GL_LINE_LOOP);
else
glBegin(GL_QUADS);
	glVertex3i(m_Xs[index0], m_Ys[index0], m_Zs[index0]);
	glVertex3i(m_Xs[index1], m_Ys[index1], m_Zs[index1]);
	glVertex3i(m_Xs[index2], m_Ys[index2], m_Zs[index2]);
	glVertex3i(m_Xs[index3], m_Ys[index3], m_Zs[index3]);
glEnd();
}

// The other functions should be pretty self-explanatory.





I'm also not sure where it's getting the color palette from. I just figured it out through trial & error:



TestDriveModel_ColorTable.cpp

#include "TestDriveModel.h"
#include 	// NULL

static unsigned char Colors[32*3] =
{
0, 0, 0,
	0, 0, 162,
0, 162, 0,
	0, 162, 162,
162, 0, 0,
	0, 255, 255,
162, 81, 0,
	81, 81, 81,
0, 0, 0,
	81, 81, 243,
81, 243, 81,
	0, 255, 255,
243, 81, 81,
	0, 255, 255,
243, 243, 81,
	243, 243, 243,
40, 40, 40,
	243, 243, 243,
77, 190, 105,
	255, 0, 255,
227, 0, 0,
	0, 255, 255,
190, 89, 0,
	190, 174, 190,
89, 85, 89,
	109, 113, 255,
150, 223, 166,
	255, 0, 255,
255, 109, 109,
	255, 0, 255,
231, 239, 174,
	255, 0, 255,
};

static unsigned char ColorFarm[32*3] =
{
0, 0, 0,
	0, 0, 0,
0, 89, 89,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
0, 162, 0,
	0, 0, 0,
162, 0, 0,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
0, 0, 0,
	0, 0, 0,
};

void C_TestDriveModel::GetColor(int Index0, int Index1, int Special0, int Special1, int &outRed, int &outGreen, int &outBlue)
{
outRed = 255;
outGreen = 0;
outBlue = 255;

int CombinedColor = Index1 | (Index0 << 8);
int Special = Special1 | (Special0 << 8);

unsigned char *ThisTable = NULL;
if (Special == 0x00c0)
{
	// Glowing light polygon
	outRed = 255;
	outGreen = 255;
	outBlue = 255;
}
else
{
	switch (CombinedColor)
	{
		case 0x6050:
		case 0x5060:
		case 0x5010:
		case 0x1050:
			ThisTable = ColorFarm;
			break;
		case 0x1040:
			outRed = 0;
			outGreen = 89;
			outBlue = 69;
			break;
		case 0x1018:
			outRed = 0;
			outGreen = 117;
			outBlue = 60;
			break;
		case 0x1020:
			outRed = 117;
			outGreen = 56;
			outBlue = 0;
			break;
		case 0x1060:
			outRed = 0;
			outGreen = 60;
			outBlue = 60;
			break;
		case 0x1810:
			outRed = 0;
			outGreen = 105;
			outBlue = 65;
			break;
		case 0x3040:
		case 0x2010:
			outRed = 101;
			outGreen = 48;
			outBlue = 0;
			break;
		case 0x4030:
			outRed = 81;
			outGreen = 40;
			outBlue = 0;
			break;
		case 0x4010:
			outRed = 0;
			outGreen = 105;
			outBlue = 65;
			break;
		case 0x6010:
			outRed = 0;
			outGreen = 40;
			outBlue = 44;
			break;
		default:
			ThisTable = Colors;
			break;
	}
}

if (ThisTable != NULL)
{
	int Index16 = Index0 >> 3;
	int Offset = Index16 * 3;
	int Red0 = ThisTable[Offset++];
	int Green0 = ThisTable[Offset++];
	int Blue0 = ThisTable[Offset++];
	outRed = Red0;
	outGreen = Green0;
	outBlue = Blue0;
	Index16 = Index1 >> 3;
	Offset = Index16 * 3;
	int Red1 = ThisTable[Offset++];
	int Green1 = ThisTable[Offset++];
	int Blue1 = ThisTable[Offset++];

	// Blend between the two different colors
	//outRed = (Red0 + Red1) >> 1;
	//outGreen = (Green0 + Red1) >> 1;
	//outBlue = (Blue0 + Red1) >> 1;
	outRed = ((Red0*9) + (Red1*7)) >> 4;
	outGreen = ((Green0*9) + (Green1*7)) >> 4;
	outBlue = ((Blue0*9) + (Blue1*7)) >> 4;
	return;
}
}





Here are the offsets to the models:

SCENE01.DAT



0x4d1

0x92d

0xd6f

0x119f

0x15e5

0x1b21

0x1fcf

0x2499

0x29cd

0x2f13

0x337f

0x379b

0x3bf9

0x41a3

0x462d

0x4b7b

0x5147

0x5637

0x5d15

0x6261

0x68b7

0x7035

0x7669

0x7c4d

0x8103

0x85cd

0x89fd

0x8e55

0x90f1

0x93ed

0x96cd

0x9a63

0x9fd9

0xa557

0xa915

0xace3

0xb23b

0xb725

0xc213

0xc735

0xcb0d

0xcec5

0xd2fb

0xd5a7

0xd783

0xdb53

0xe1d3

0xe827

0xeeaf

0xf551

0xfd85





DATAB.DAT



0x237bb

0x23cd3

0x242ff

0x249a3

0x24afd

0x24c87

0x24fe5

0x25267

0x2556d

0x257fb

0x25a4b

0x25c55

0x25f87

0x2627f

0x2668d

0x2698f

0x26cdb

0x27167

0x276ad

0x27b8b

0x2808b

0x28d7b

0x2939b

0x2990d

0x29d9d

0x2a319

0x2a915

0x2ae9b

0x2b3e9

0x2b863

0x2bcb3

0x2c17b

0x2c6cd

0x2c7e7

0x2ca7b

0x2cc93

0x2cf33

0x2d425

0x2d8e7

0x2ddc7

0x2e201

0x2e627

0x2ea1b

0x2ede1

0x2f1a3

0x2f3a9

0x2f82f

0x2fd2f

0x30123

0x30773

0x30b87

0x31051

0x31577

0x319b5

0x31d83

0x322d9

0x32671

0x32a5d

0x32f9a

0x33062

0x33268

0x333b2

0x33412

0x3351a

0x335ec

0x33686

0x3375c

0x33dd0

0x35024

0x35090

0x350fc

0x35174

0x351ec

0x35264

0x353d4

0x354a4

0x35592

0x35654

0x356f8

0x3582c

0x358b0

0x3595e

0x35ab0

0x35b42

0x35c68

0x35f68

0x37e58

0x395f2

0x3a9b8

0x3aa4a

0x3aaa4

0x3ab4a

0x3ac3c
